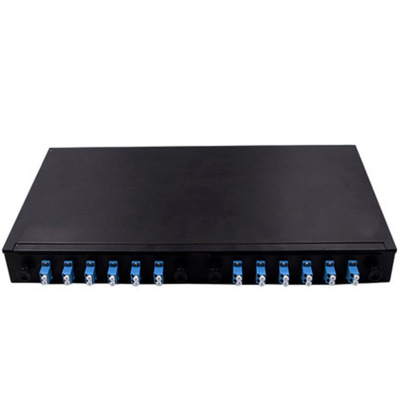

Fiber Optic Fixed PatchPanel

The Fiber Optic fixed patchpanel  is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common di stribution requirements.

Specificaiton


Insertion loss	≤0.2dB
UPC return loss	≥50dB
APC return loss	≥60dB
Life of insertion and extraction	>1000 times
Working temperature	-40℃~+85℃
Relative humidity	≤85%(+30℃)
Atmosphere pressure	70Kpa~106Kpa
The grounding device is isolated with the cabinet, isolation resistance is less than 2x104MΩ/500V(DC); Insulation Resistance≥2x104MΩ/500V.
The withstand voltage between grounding device and cabinet is no less than 3000V (DC)/min, no puncture, no flash-over; U≥ 3000V.
